Customized Round Aluminum Bracelet Anode / Marine service ISO DNV

China Hunan High Broad New Material Co.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

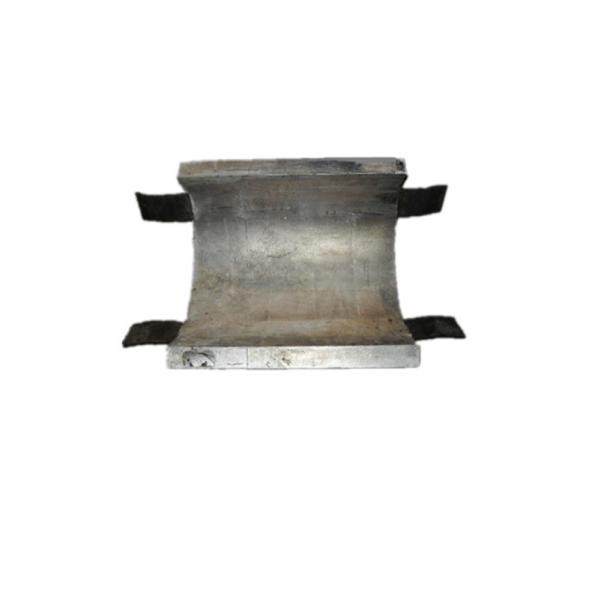

Customized Round Aluminum Bracelet Anode / Marine service ISO DNV

Brand Name : OEM Magnesium anode , Zinc anode, Aluminum anode for anti-corrosion(engineering project)

Model Number : Aluminum Bracelet Anode

Certification : ISO, DNV,GB 4948 , ASTM Aluminum Hull Anode

Place of Origin : China Aluminum Anode for Ballast Tank protect

MOQ : 10 Kilograms

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 300 Metric Ton/Metric Tons per Month

Delivery Time : 1 FCL:14 Days

Packaging Details : On pallet with steel bundles

Name : Aluminum Bracelet Anode for Corrosion Protection

Al-Zn-In Alloy : Anti-corrosion/Cathodic Protection Aluminum Bracelet Anode

Our Products : Magnesium Anode Aluminum Anode Zinc Anode For Cathodic Protection

Usage : Cathodic Protection For Offshore Project, Bridge,, Anti Corrosion

Sacrificial Anode Shape : Aluminum Anodes For Seawater And Offshore Structures

Application : Marine service Aluminum Bracelet Anode

Category : Sacrificial Aluminum Ballast Tank Anode For Cathodic Protection

Al Anode Type : Aluminum Bracelet Anode for Marine service

Contact Now

Customized Round Aluminum Bracelet Anode / Marine service ISO DNV

Sacrificial Aluminium Anodes are simple and economical that it could be performance under a variety of environmental conditions, after proper installation that Aluminium anodes will performance efficiently and continuously without any attention for CP systems.

With its perfect performances, it could be widely used for the cathodic protection systems of seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, etc.

Aluminum Bracelet Anode

Anode

Weight

Kg/pair

Diameter

mm

Width

mm

Thickness

mm

Steel Core

mm

HM-13

13

819

60

30

5x25

HM-17

17

624

80

30

5x50

HM-26

26

252

250

45

5x50

HM-32

32

385

150

59

5x50

HM-50

50

470

480

25

5x50

HM-68

68

1020

200

35

5x50

Specifications:

Chemical Composition

Type

Alloy Element

Zn

In

Si

Cu

Fe

Hg

Cd

Other

Al

Each

Total

HAL- I

2.80-6.50

0.01-0.02

0.08-0.2

0.006max

0.12max

-

0.002 max

0.02 max

0.05

max

Balance

HAL- I

4.75-5.75

0.016-0.02

0.08-0.12

0.003max

0.06max

-

0.002max

0.02

max

0.05

max

Balance

MIL-A-24779(SH)

4.0-6.5

0.014-0.02

0.08-0.2

0.004max

0.09max

0.001max

-

0.02

max

0.1

max

Balance

Electrochemical Performance

Type

Electrode Potential

-V(vs Cu/CuSO4)

Current Efficiency

%(vs Cu/CuSO4)

Generating Current

(A.h)/kg(vs Cu/CuSO4)

HAL- I

1.57

85

1150

HAL- I

1.15

85

1150

Advantage:

1) Over 10 years anode production experience;

2) Three workshops and strong technical teams;

3) Complete production processing line, from raw materials, mechanical process, surface

treatment, electro-deposition, also with deep processing capacity;

4) ISO9001: 2008, SGS, DNV GL standardize corporate;

5) Multi business scope, various types of products, ensures market shares.

Company Brief Introduction:

We are a professional anode supplier over 16 years ,mainly supply:

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* Magnesium anodes ( ASTM-G97)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

We can also accept customized anodes with your logo according to your drawing !
